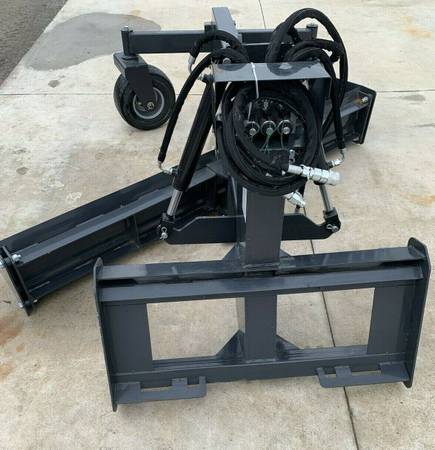

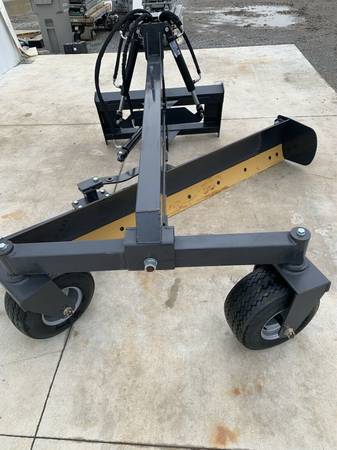

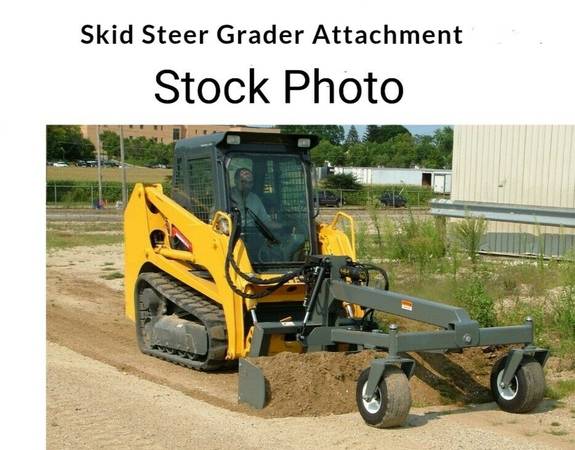

96" Skid Steer Hydraulic 6-Way Grading Blade / Grader / Dozer - $2,450 (Lexington Park)
QR Code Link to This Post
Compare to OEM Bobcat for 10k
Specifications:
Overall Height 46.6"
Overall Length 98"
Overall Width 96"
Operating Weight 1195 Lbs
Mount-Universal Skid Steer Plate
Hydraulic Blade Adjustments- Tilt/Angle/Height
Moldboard Width 95 1/2"
Moldboard Height 15"
Moldboard Width, Fully angled 85"
Moldboard Rotation Left & Right 25 Degrees
Moldboard Tilt Up or Down 25 Degrees

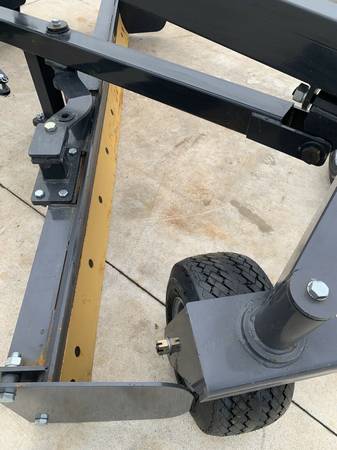

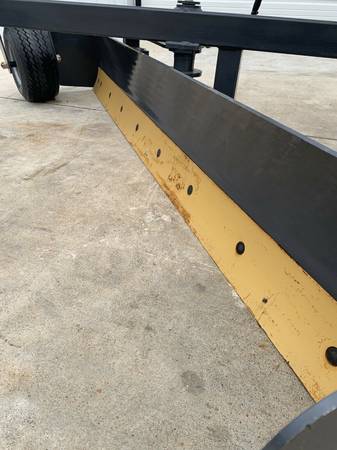

Reversible Moldboard Cutting Edge 1/2" x 6/13 x 152 Double Bevel
Moldboard Shear Pin Protection 5/16"/ 8 Diameter Shear Pin, Soft

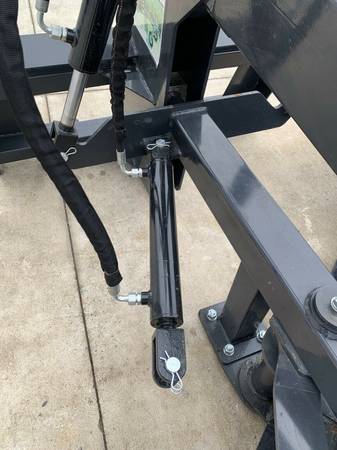

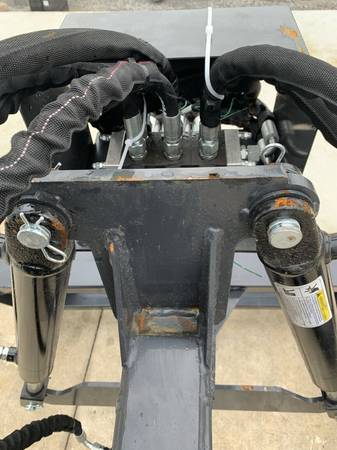

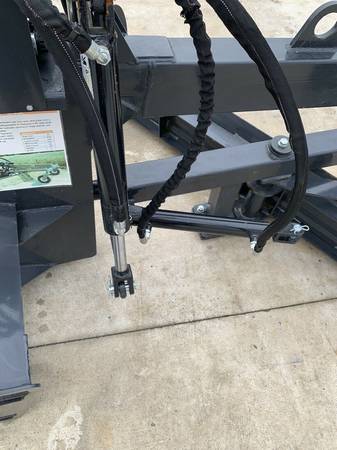

3 Hydraulic Cylinders, PSI Bar-2/5 Bore x 12"/30 stroke 3500/241
Flat faced couplers included

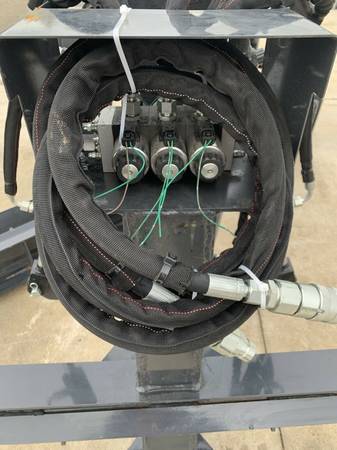

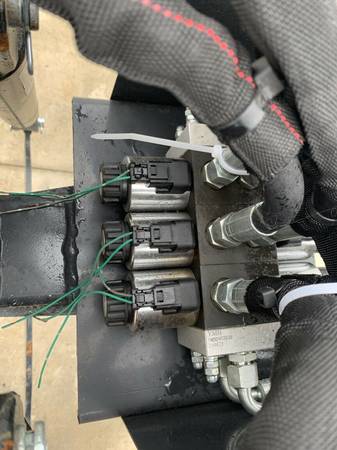

Grader Control Valve-Electric Solenoid Operated (must use your own harness or controller)
Recommended Skid Steer Power, 45 HP and Up

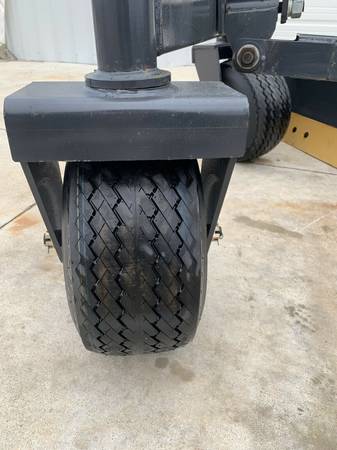

Wheel Bearings - Greaseable tapered Roller Bearings
Tire size-18.5 x 8.5 x 8/470 x 216 x203
Note that you need your own machine specific wire harness, or a universal remote or sorts.
Located in 20620 MD and can load your truck or trailer. Can ship LTL but is pricey due to dims.
