Rock Shox BoXXer R2C2 Coil Maxle 20 20x110 NON-BOOST DH FR Fork 26” - $450 (Woodbridge)
Cloverdale Rd near Benita Fitzgerald Dr
part type:
fork only
condition:
excellent
make / manufacturer:
Rock Shox
model name / number:
Boxxer R2C2 FS-BXR-R2C2-A1
size / dimensions:
20x110mm, 200mm, 1 1/8” 167mm
QR Code Link to This Post
Does not come with the crown race.
USED take off from a 2013 Transition Tr450.

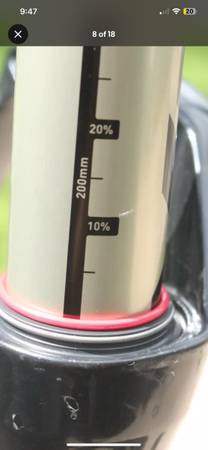

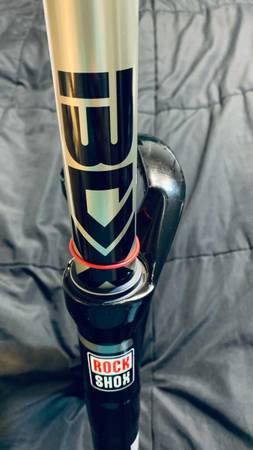

It has surface scratches on the lower legs on the outside near the dropouts and around where the front brake hose would be secured and some surface scratches under the arch where stuff is thrown off the tires. And because it’s used, it still has some residual dirt in crevices. Superficial scratches are from normal use. Also there is a small scratch on the right stanchion near the preload guide.
Was told the fork was stiff for the previous rider weight so we’re assuming the coil is the default blue, firm for heavier riders averaging 200lbs or so.

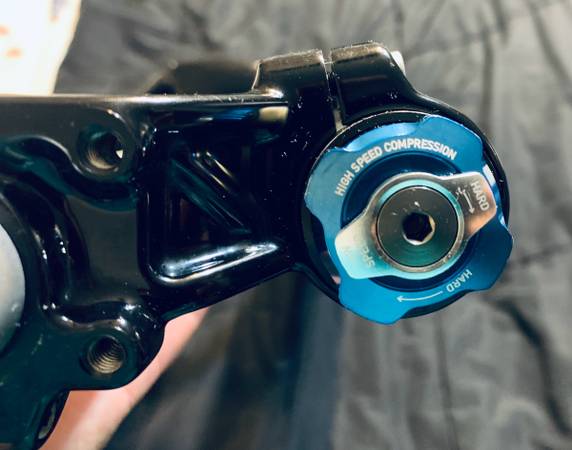

Fork has high and low speed compression, high and low speed rebound adjustments (guess that’s what R2C2 stands for) plus bottom out adjuster on the coil side.
Previous owner fully serviced the fork in 2022 and then in the Spring of 2023. It was then put away after a couple of rides. Turns out that this fork needs some FULL gravity trails to make it worthwhile, as it is stout and a bit heavy. Good if you can match it with the proper speed and trail features.
Dust seals treated with WPL Fork Boost and the seals were clean.
For:
26" wheel/tire
Standard 20x110mm DH front hub spacing... not the “boost" version.
Standard 1 1/8" aluminum steerer tube with star nut (no crown race)

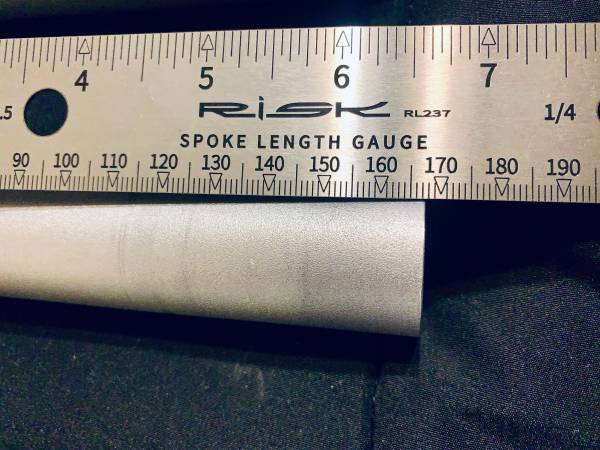

Steerer is just about 167 mm or 6 1/2” long
200 mm travel
Overall condition is really good considering its age.
Expected wear and tear marks (scratches on lowers, one small Knick on the stanchion.

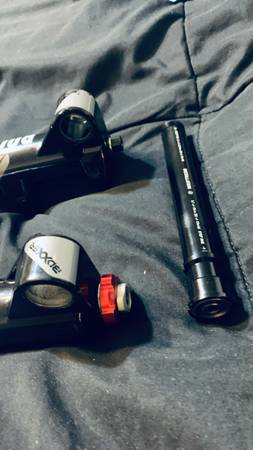

Axle threads and axle are in excellent like new shape, as are threads for direct mount stem.
2012/2013 Rock Shox BoXXer R2C2
Serial# 16T20029203
MODEL ID: FS-BXR-R2C2-A1
MODEL DESIGNATOR (SF) R2C2
WHEEL SIZE 26"
STEERER 1-1/8" Aluminum
AXLE 20x110mm
COMPRESSION DAMPER ADJUST on crown
REBOUND DAMPER ADJUST on right lower leg
SPRING Coil Blue (Firm)
POST (160mm) caliper mounts
•Featuring highly adjustable Motion Control damping technology and 35mm upper tubes, the BoXXer RC strikes a perfect balance between weight, stiffness and performance. This fork isn’t for those who live to ride. It is for those who live to ride faster.
•Mission Control DH loses the Floodgate feature of Mission Control in favor of a large port compression piston and features externally adjustable high and low speed compression for ultimate tuneability and bump-eating performance
•200mm of robust coil sprung travel
•DropStop technology controls harsh bottoming out by ramping up the spring rate as the suspension nears full compression using elastomer bumpers
•w/ Maxle Lite DH -- 160mm post mount
Service Manual: https://www.sram.com/globalassets/document-hierarchy/service-manuals/rockshox/front-suspension/2011-boxxer-r2c2-technical-manual.pdf
