Shimano Saint 32h Hubs Front HB-M820 20x110mm Thru Axle & FH-M810 Rear 10x135mm - $260 (Woodbridge)
Cloverdale Rd near Benita Fitzgerald Dr
part type:
hubs
condition:
new
make / manufacturer:
Shimano
model name / number:
Saint HB-M820 FH-M810
size / dimensions:
20x110mm 10x135 32h
QR Code Link to This Post

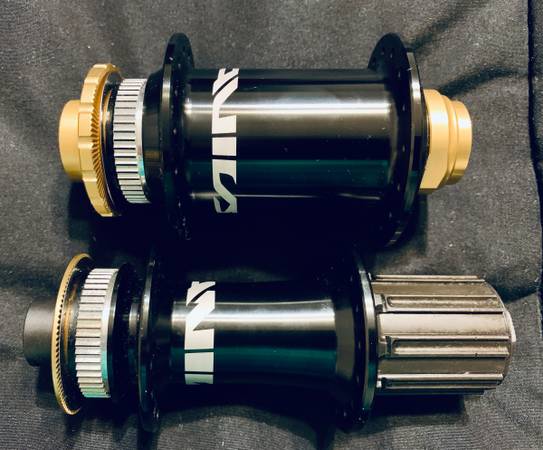

Includes:

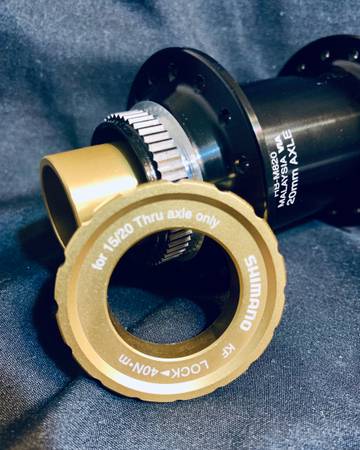

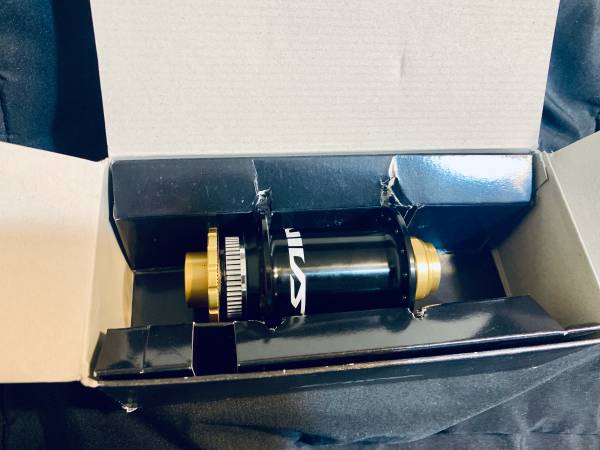

HB-M820 Front Hub 32 hole j-hook
20x110mm O.L.D. Thru Axle (TA)
20mm diameter 110mm width
Regular hub shell, NOT Boost version
Uses the 20mm thru axle that comes with your 20x110 fork
Uses standard centerlock rotor

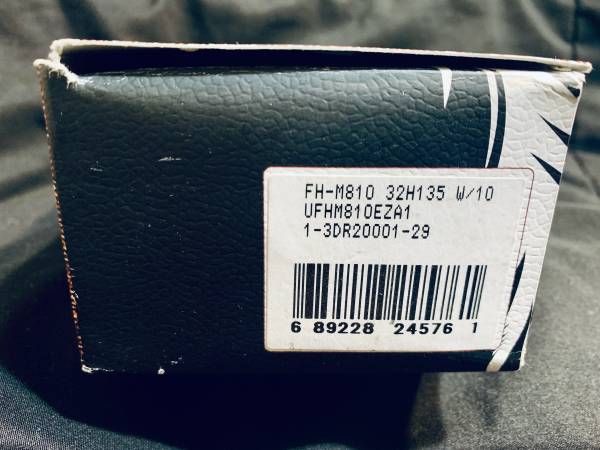

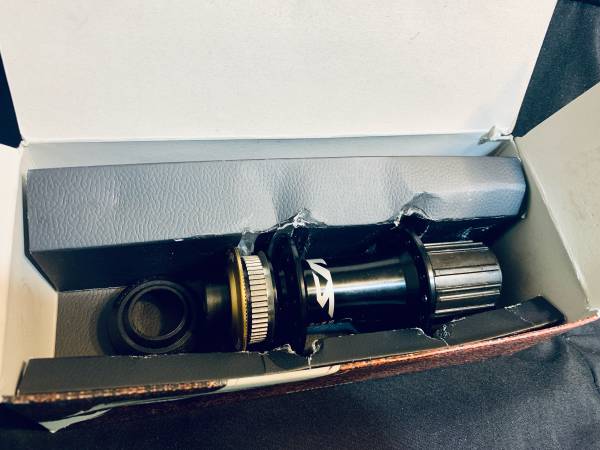

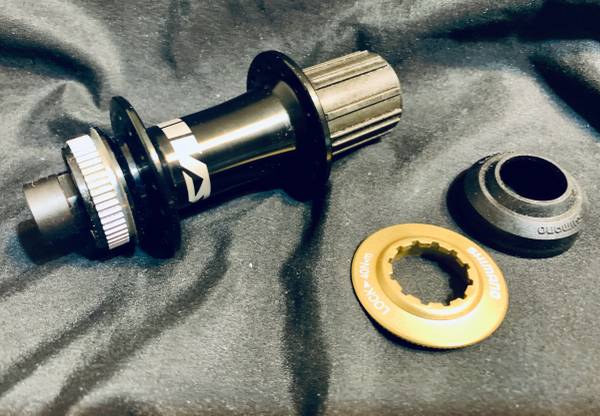

FH-M810 Rear Hub 32 hole j-hook
10x135mm O.L.D. Thru Axle (TA)
10mm diameter 135mm width
Regular hub shell, NOT boost

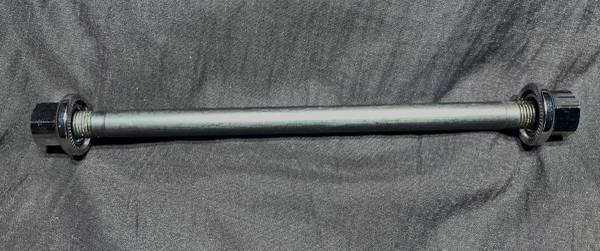

Uses a 10mm thru axle. One with track nuts included.
Mounts onto standard 135mm rear dropout
8-10 speed Shimano HG freehub.
Will work with MTB wide range 11 speed cassettes as long as there’s enough spike clearance when derailleur on lowest gear.
Uses standard centerlock rotor
