Desktop Computer Abit AN7 2.2 Ghz 1.5 GB RAM 500 GB HD DVD CDRW - $40 (NW Alexandria)
condition:
salvage
make / manufacturer:
Abit / Antec
model name / number:
AN7 / mid tower case
size / dimensions:
16.5" H x 8" W x 18.5" D
QR Code Link to This Post
Pick up near 395 FWY & Seminary Rd
Condition: Salvage. Motherboard tested. Power supply changed. Still no boot. Motherboard requires replacement. Clean no dust. Dust bag sealed. The case is in good condition.
Sells elsewhere working up to $500
Salvage parts alone are worth over $100.
Includes
Motherboard printed user manual, CD-ROM motherboard drivers, PDF user manual, CD-ROM video card drivers, PS2 keyboard, PS2 mouse, AC power cable.
The computer was newly restored and in perfect condition. Then it sat unused for many years in a dust proof bag. Then it was powered up but it did not boot. The onboard POST code LED displays, "00". Other times the POST code LED displays, "F". All add in cards were removed. RAM removed and replaced with known working RAM. CMOS jumper was cleared. Capititors examined and all appear okay. The power supply was changed for a known working power supply. Still no boot. The included motherboard manual does not list POST code definitions for "00" or "F". The computer had never acted like this in the years before it sat unused. It used to be a perfectly working computer. It needs motherboard replacement, as low as $10 - $40 elsewhere including CPU, fan assembly and RAM easy enough to swap.
The mid tower case is good for running RAID multiple drive systems. Available hard drive slots to test and run multiple boot operating systems. Includes easy mount hard drive rails; no screws necessary slide in and lock, plug and play internal drive mounting. Good case for work bench tool for testing parts. DVD-ROM, CDRW burner, floppy disk drive for software read and write.
Good for salvage parts, Antec mid tower case, CPU / heatsink / fan assembly, RAM, hard drive, DVD-ROM, CDRW burner, floppy disk drive, video card S-Video out / RCA TV out / VGA out, PCI USB 5 port adapter, internal cables, ATX power supply with SATA connectors, PS2 keyboard, USB / PS2 mouse, AC power cable, software CD-ROMs.
Antec ATX mid tower case
Supports both ATX and micro ATX motherboard
Power supply ATX Antec 380 W, 9x Molex, 2x SATA, 20 pin ATX power, 4 pin P4 power
Includes easy mount hard drive rails; no screws necessary plug and play internal drive mounting
4x Internal 5.25" drive bays
3 x External 5.25" drive bays
2 x 3.5" Floppy drive bays
Front: 2x USB, Headphone out, Microphone in
Color: Gloss Black
Installed
CPU Processor AMD Athlon XP Barton 3200+ 2.2 Ghz 32-Bit 1 Core 400 MHz FSB 200 MHz base SSE1 128 / 512 cache MMX 3DNow! SSE
1.5 GB RAM (3 GB maximum)
500 GB Hard drive SATA 7200 RPM 150 MB/sec
AGP Video ATI Radeon 9200 SE 128 MB 333MHz Full HD 3D 32-bit color QXGA 2048 x 1536, PC VGA, TV S-Video, TV RCA composite out
DVD-ROM
CDRW burner (tray sticks open with included paper clip)
PCI Belkin F5U220 5 port USB 2.0 Adapter, 4x external, 1x internal USB
3.5" Floppy drive (White)

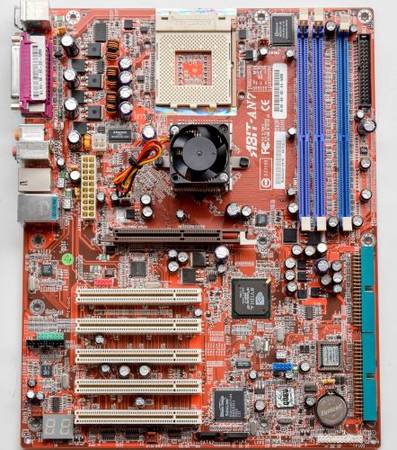

Motherboard
Abit AN7 Socket A (PGA462) 32-Bit, NVIDIA nForce2 Ultra 400 chipset, ATX form factor
Internal Ports
1x AGP 4x, 8x video
2 x SATA 150 MB/Sec
2 x PATA100 Parallel controllers
5 x PCI
PCI 4 x USB 2.0/1.1 internal header to backplate USB 4 ports
External Ports
LAN Ethernet onboard Realtek 100Mbps 1x RJ-45
4 x USB 2.0/1.1 external ports
1 x IEEE 1394a Firewire
2 x PS/2 Keyboard Mouse
Audio onboard AC97 6 Channels
5 x Audio Jacks
1 x Optical S/PDIF Out
1 x Optical S/PDIF In
1 x COM (Serial Port)
1 x LPT (Parallel Port)
Includes
• Abit AN7 / Antec mid tower case. Clean no dust. Dust bag sealed
• Abit Motherboard printed user manual
• Abit CD-ROM motherboard drivers, user manual
• ATI Radeon 9200 SE CD-ROM video card drivers
• Microsoft Internet Keyboard Pro, RT9420, 19 function keys, 2 port USB Hub, Wrist rest, PS2. Clean no grunge, dust bag sealed

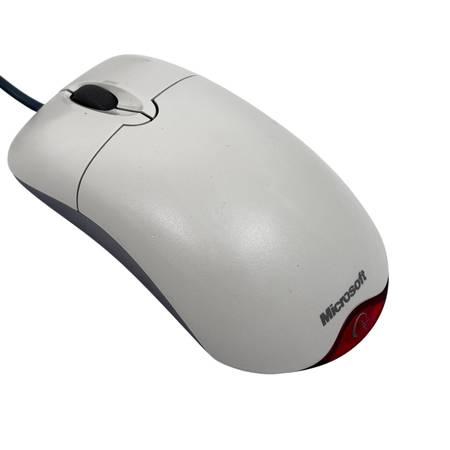

• Microsoft Wheel Mouse Optical USB and PS2 Compatible, X05-87477, USB, PS2 adapter. Clean no grunge, dust bag sealed
• AC power cable
Brand: Abit / Antec
Model: AN7 / mid tower case
Size Dimensions: 16.5" H x 8" W x 18.5" D
